1'' Front Levelling Kit - 24-25 Land Cruiser Prado 250
CALL FOR FITMENT PRICE.
Details
The 66-54100 2024-2025 Toyota Land Cruiser Levelling Kit is an excellent choice for those who want a level stance while running larger tyres up to 34 inches. The no-trim maximum tyre size for this kit is a 285/75R17 with a 17x 8 wheel and +35 offset. The SST Kit 69-54255 is great for those want a small front and rear lifted stance while up to 285/75. The no-trim maximum tyre size for this kit is a 285/75R17 with a 17x 8 wheel and +35 offset.
Key Features
Max Tyre Diameter 285/75R17 with a 17x 8 wheel and +35 offset.

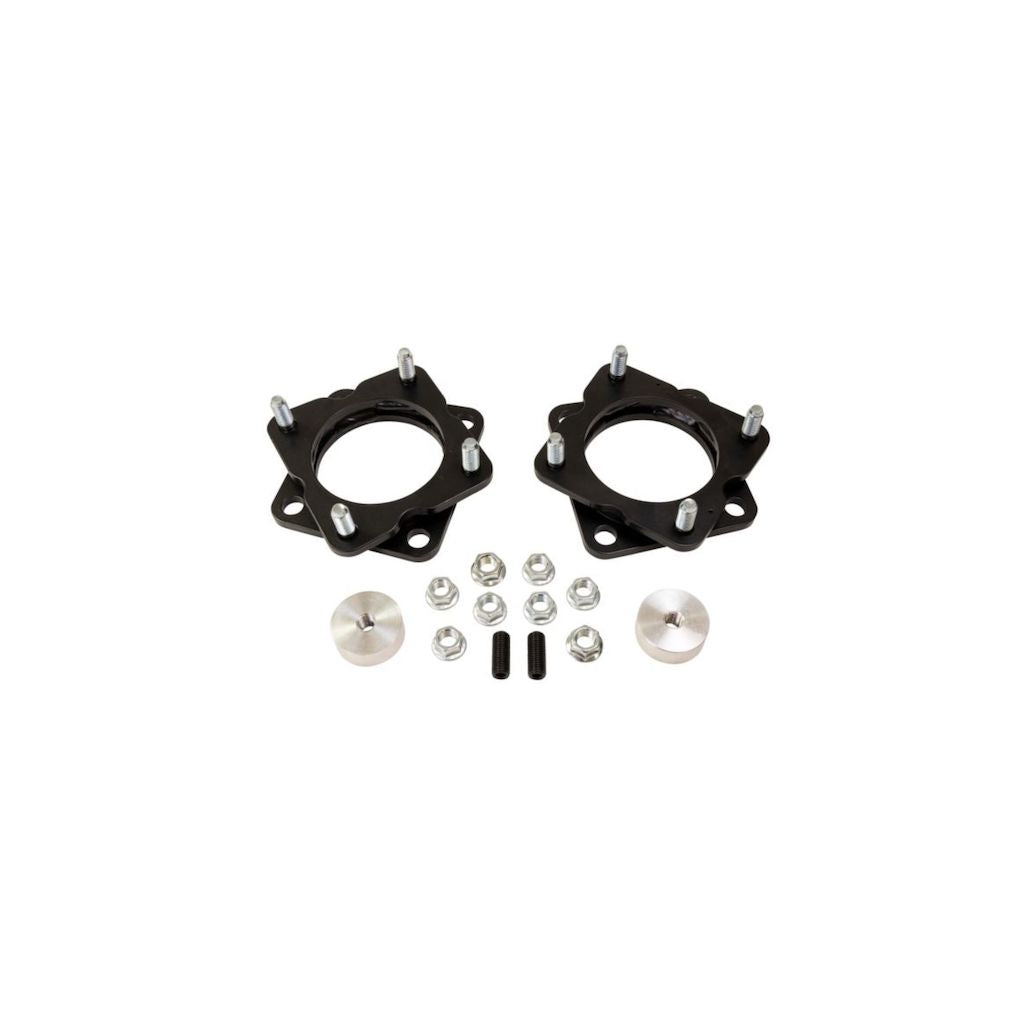

Fabricated steel front strut spacers.
Includes: One pair of fabricated steel upper strut extensions.
& Front Bump Stop extensions.
Fitment
Wheel Tyre Note
Stock (17x7 +60) 285/70R17 No Trim (Widest tyre you can put on, Knuckle clearance)
17x8 +35 285/70R17 No Trim
17x8 +35 285/75R17 No Trim
17x8.5 +47 285/70R17 No Trim
17x8.5 +47 285/75R17 No Trim
17x8.5 +25 285/70R17 No Trim
17x9 +1 285/70R17 May require trimming. (4mm clearance)
Tyre Size Note
18x8 +35 285/65R18 No Trim
18x8 +35 285/70R18 No Trim
18x8.5 +47 285/65R18 No Trim
18x8.5 +47 285/70R18 No Trim
18x8.5 +25 285/65R18 No Trim
18x9 +1 285/65R18 May require trimming. (4mm clearance)
Due to product differences among tyre manufacturers, tyre specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tyre and wheel manufacturer. Every tyre and wheel combination should be test fit prior to installation. Consult us to learn more about the right tyre fitment for your application.
Installation
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt manoeuvres. Always wear seat belts, and drive safely, recognising that reduced speeds and specialised driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
Guide .
