2.5" SST Lift Kit - 24-25 Land Cruiser Prado 250 & Lexus GX550 24 - 25
CALL FOR FITMENT PRICE.
Details
is excited to continue building products for the Toyota customer. The 2.5” SST adjusts both the front and the rear of the vehicle, allowing for an even larger tyre fitment.

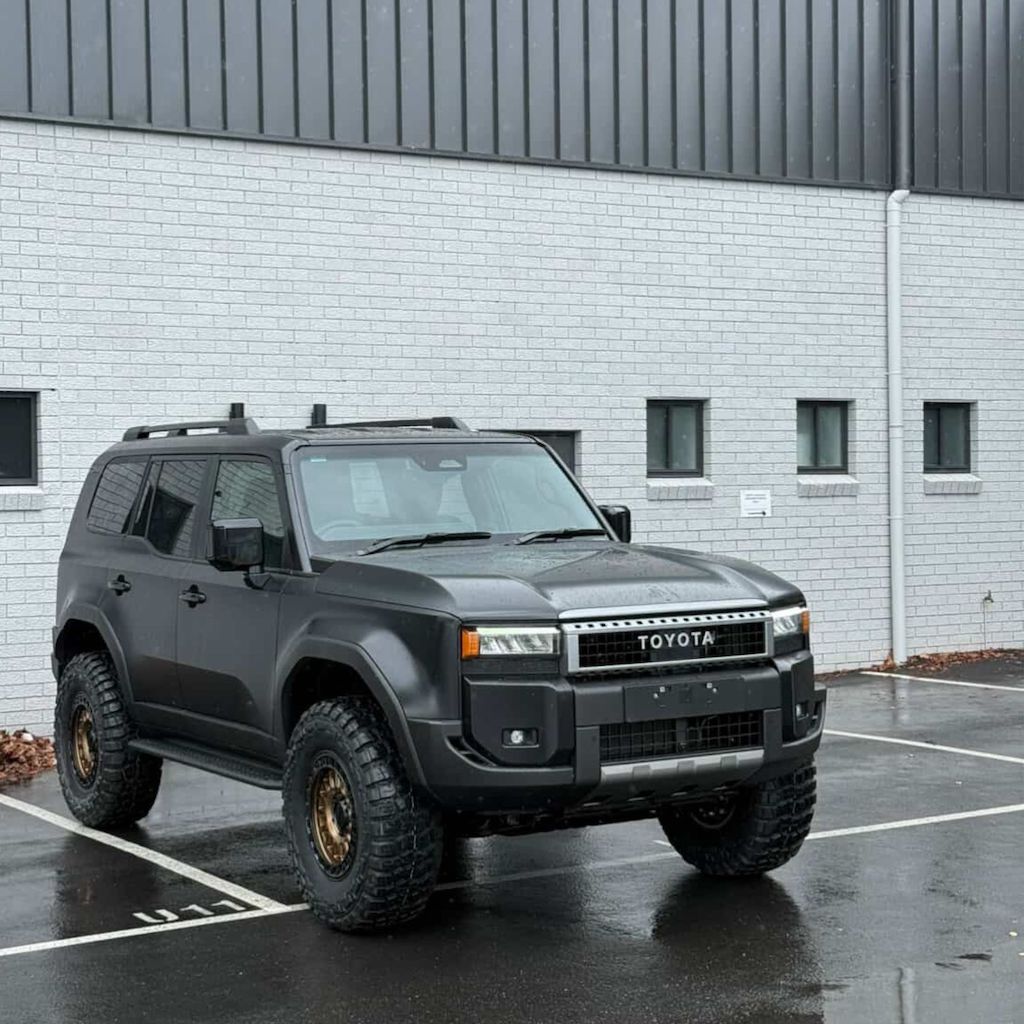

The SST kit is an economical way of altering vehicle ride height, which also allows the consumer to upgrade their tyres to a preferred larger size. Nothing looks better than a lifted Land Cruiser with an aggressive stance and that is exactly what ReadyLIFT SST provides! ReadyLIFT used proven technological engineering methods to produce an SST Suspension Lift System for the 2024 Toyota Land Cruiser and Lexus GX 550 that yields 2.5" in the front and 1" in the rear.
Key Features
Land Cruiser - Max Tyre Diameter 285/75R17 with a 17x 8 wheel and +35 offset
Land Cruiser - Max Tyre Diameter with trimming 285/65R18 with a 18x9 wheel and +1 offset
Lexus GX550 - Max Tyre Diameter with trimming 275/65R20 +18 offset
Fabricated steel front strut spacers
Rear 1” Coil Spacer
Billet Pre-Load Spacer
Fits: 2024 - 2025 Toyota Land Cruiser & 2024 - 2025 Lexus GX550

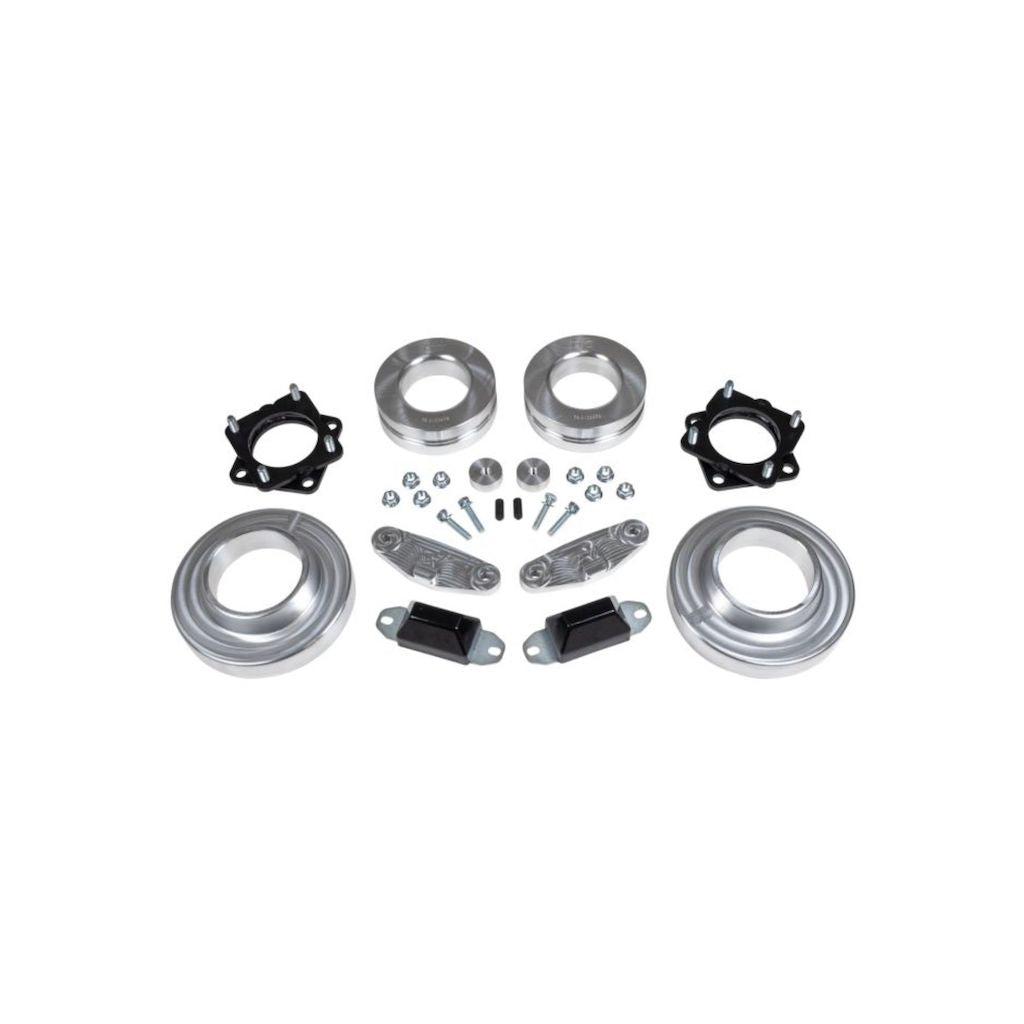

Includes:
REAR OUTER BUMP STOP
24+ FRONT STRUT SPACER, 7/8"
FRONT BUMP STOP EXT
REAR BUMP STOP EXT
FRONT PRELOADD SPACER
REAR SPRINGG SPACER 1.25"
HARDWARE PACK
Fitment
Wheel Tyre Note
Stock (17x7 +60) 285/70R17 No Trim (Widest tire you can put on, Knuckle clearance)
17x8 +35 285/70R17 No Trim
17x8 +35 285/75R17 No Trim
17x8.5 +47 285/70R17 No Trim
17x8.5 +47 285/75R17 No Trim
17x8.5 +25 285/70R17 No Trim
17x9 +1 285/70R17 May require trimming. (4mm clearance)
Tyre Size Comparison
18x8 +35 285/65R18 No Trim
18x8 +35 285/70R18 No Trim
18x8.5 +47 285/65R18 No Trim
18x8.5 +47 285/70R18 No Trim
18x8.5 +25 285/65R18 No Trim
18x9 +1 285/65R18 May require trimming. (4mm clearance)
20x8.5 +35 285/65R20 No Trim
20x9 +18 285/65R20 No Trim
20x9 +1 285/65R20 May require trimming. (4mm clearance)
Land Cruiser 285/75. The no-trim maximum tire size for this kit is a 285/75R17 with a 17x 8 wheel and +35 offset.
Due to product differences among tyre manufacturers, tyre specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tyre and wheel manufacturer. Every tyre and wheel combination should be test fit prior to installation. Consult us to learn more about the right tyre fitment for your application.
Installation
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt manoeuvres. Always wear seat belts, and drive safely, recognising that reduced speeds and specialised driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
Guide .
